| Accessory Name: | Brand and parameters |

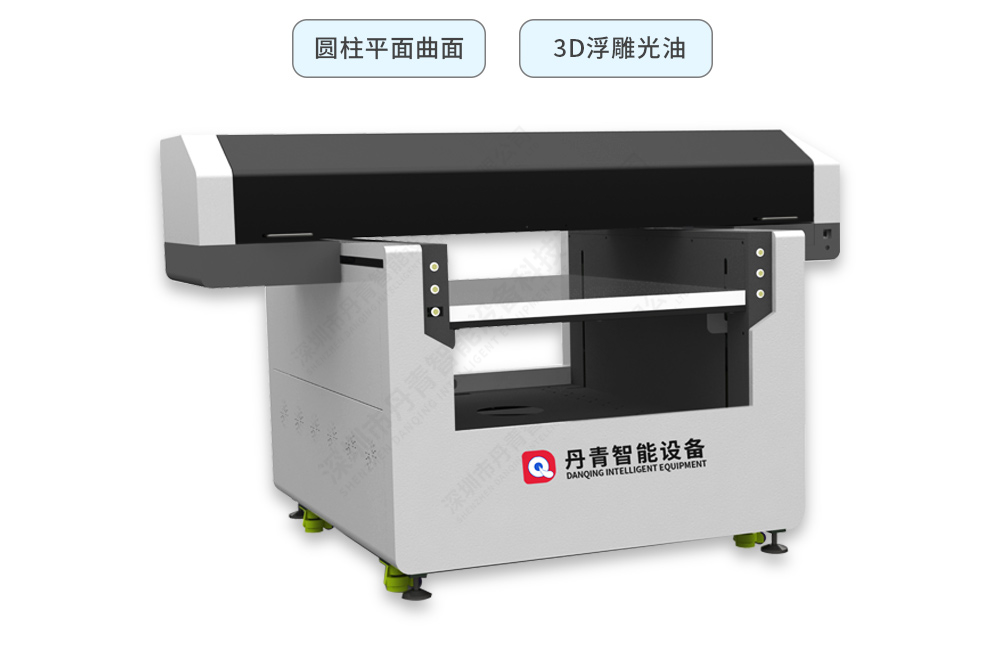

| Equipment model | AC-9090 |
| Nozzle brand and model | RicohGh2220 |
| Quantity and configuration of nozzles | 3/4/5/6/7/8Nozzle (optional)（KCMY W、KCMY WW、KCMY WWV、KCMY WWVV |
| Color scheme | Cblue/Mred/Yyellow/Kblack/Wwhite/VGlossy oil |
| UVInk | Neutral ink |
| Curing lamp | LEDWater cooled lamp Water circulating cooling system |
| RIPSoftware | U.S.APP PHOTOPRINT |
| XBrand of shaft guide rail | Silver mute guide rail |
| XShaft belt | Industrial silent synchronous belt |
| X/Y/ZShaft motor | Rexay servo integrated motor/Rexay closed loop motor |
| XAxle beam | Finish milling aluminum alloy profile |
| XDrag chain | Igus, Germany |
| YShaft drive screw rod | Silver loading high precision double screw |
| Platform lifting screw | Stainless steel screw rod |
| Platform type and accuracy | Aluminum alloy vacuum honeycomb adsorption platform, error ±fiveSilk |
| Number of adsorption fans | Vortex fan |
| Main cartridge capacity | 750ml |
| Liquid level alarm mode of main ink cartridge | Buzzer indicator light |
| Filtering method and specification | Primary filtration, 5 μ |
| Negative pressure control mode | Positive and negative voltage alternating control |
| Switch specification of the whole machine | 15AHigh power stainless steel metal switch with lamp |
| Ink pipeline of complete machine | UVspecial-purpose |
| Ink supply system | White ink mixing, automatic ink supply from secondary ink cartridge |
| Control system | Shanghai Rongyue board,USB2.0Stable and reliable transmission |
| Frame structure | Gantry precision milling welded steel frame |
